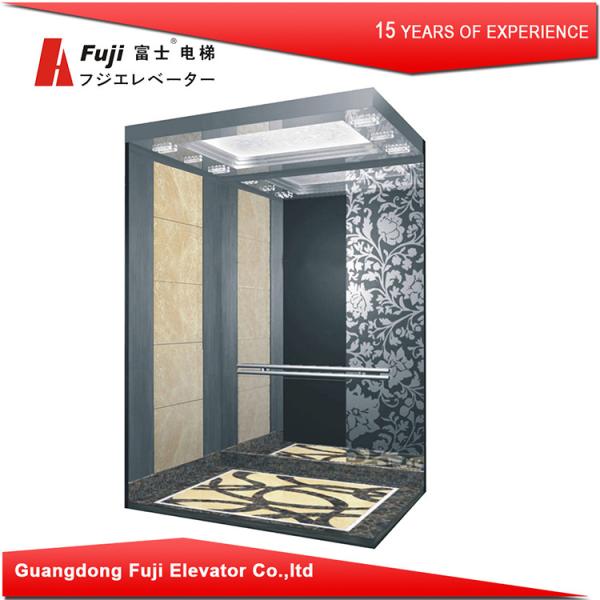

ARD Passenger Freight Elevator
Passenger elevator series, with human nature as the height
Take technology as a weapon and design as a pioneer
Technically, it adopts a new generation of permanent magnet synchronous gearless traction machine and computer control technology, combines a data network system and a modular structure, and uses an effective self-check program to make the elevator system control more flexible, accurate, efficient and reasonable.
Small machine room passenger elevator
Save building space, expand building space utilization, make the operation more sensitive and reliable, make the building more elegant and beautiful, small machine room elevator, using rare earth material permanent magnet synchronous gearless traction machine and elevator special thin control cabinet, reducing 25mm The height of the machine room makes the area of the machine room consistent with the area of the hoistway.
Passenger elevator without machine room
Adhering to the energy-saving and high-efficiency advantages of machine-room-less elevators, the product has been upgraded in terms of customer experience, civil construction costs, installation and maintenance convenience, etc., using efficient host and control systems, which have faster speeds and better riding comfort. Higher security.
| Machine roomless panoramic lift standard parameter list: |
| Loading capacity |
Speed |
Standard cabin size |
Standard shaft size |
Pit depth |
Overhead |
| (kg) |
Persons |
(m/s) |
Width |
Depth |
Width |
Depth |
(mm) |
(mm) |
| (mm) |
(mm) |
(mm) |
(mm) |
| 630 |
8 |
1.0~2.5 |
1300 |
1200 |
2100 |
1600 |
1500 |
4200 |
| 800 |
10 |
1.0~2.5 |
1400 |
1350 |
2200 |
1800 |
1500 |
4200 |
| 1000 |
13 |
1.0~2.5 |
1600 |
1400 |
2400 |
1900 |
1500 |
4200 |
| 1350 |
18 |
1.0~2.5 |
1900 |
1600 |
2900 |
2000 |
1500 |
4200 |
| 1600 |
21 |
1.0~2.5 |
2000 |
1700 |
3000 |
2100 |
1500 |
4200 |
| Function for Residential Home Elevators and villa elevator |
|
|
|
| |
|
|
|
| B |
Standard Function |
O |
Optional Function |
| Safety Features |
| Fault Detection |
| B |
Motor Overheating Protection |
B |
Forbidden Switch of Door Opening |
| B |
Subsection Inspection of Safety Circuit |
B |
Speed Governor Tension Safety Contacts |
| B |
Main Power Switch Box |
B |
Car Door Contacts |
| B |
Running Hours Cumulating |
B |
Car Lighting Main Switch Box Main Fuse |
| |
| Inside of Controller Box |
| B |
Car Positioning Switch |
B |
Pit Brace Rod Contacts |
| B |
Car Emergency Stop Switch--Car Top |
B |
Car Top Brace Rod Contacts |
| B |
Car Emergency Stop Switch--Pit |
B |
Electrical Brake Releasing Function |
| B |
Safety Gear Safety Contact |
B |
Car Emergency Light |
| B |
Speed Governor Safety Contacts |
O |
ARD--- Automatic Rescue Device |
| B |
Main Switch Inside Controller Box |
B |
Emergency Call(One Digit Dial Telephone) |
| Information Function |
Comfort Functions |
| Landing Information Display |
Entering & Exit Cabin |
| B |
Landing Call Indicating Light |
B |
Door Opening Button |
| O |
Travelling Direction Indicators at Every Floor, Floor Number Display |
B |
Door Closing Button |
| B |
Light Curtain |
| Inside Cabin Information Display |
Comfortable Running |
| B |
COP Call Indicating Light |
B |
Car Lighting |
| B |
Overload Symbol& Buzzer |
B |
Fan |
| B |
Car Position Display |
O |
Background Music |
| B |
Travelling Direction Indicators |
O |
Voice Announcer |
| CCTV Camera |
Misusage Protection |
| B |
Door Zone Indicating Light |
B |
Calling Cancellation by 2 Times Button Pressing on COP |
| B |
Running Times Accumulating |
B |
Viscous Button Monitoring |
| B |
Normal Fault Signal |
B |
Opposite Direction Calling on COP |
| Control Functions |
| Prior/Special Service Functions / Special Functions |
| B |
Landing Call Forbidden |
B |
Testing Running |
| B |
Auto Door |
O |
Functions for Disabled (Braille Button, Voice Announcer) |
| B |
Door Opening and Closing Timing at Each Floor, Unified Regulation |
B |
Re-Opening Door When Landing Call |
| B |
Inspection Running |
O |
Through Opening Door |
| B |
Emergency Returning |
O |
Optional Door is Available (If It is Through Opening) |
